“I just got a second monitor for my home office, but I can’t figure out how to get both screens working properly with Windows 11. One monitor keeps showing a duplicate of the other, and I need them to work as separate displays so I can have my email on one screen and my work documents on the other. How do I set this up correctly?”
Problem to solve and multi-monitor configuration overview
Modern work environments increasingly demand enhanced productivity through expanded screen real estate, making dual monitor configurations essential for professionals managing multiple applications simultaneously. Windows 11 provides comprehensive built-in support for multiple displays, offering flexible arrangement options and display management tools that accommodate various workflow requirements.
We will explain ind detail how to install dual monitors in Windows 11, including hardware connection verification, display detection, arrangement customization, and resolution optimization. We will establish a workflow that transforms a single-monitor setup into an extended desktop environment where each display functions independently, allowing users to maximize their workspace efficiency.
Note that you’ll need available video output ports on your computer, two compatible monitors, and appropriate connection cables. The configuration process utilizes Windows 11’s native Display Settings interface without requiring third-party software installations.

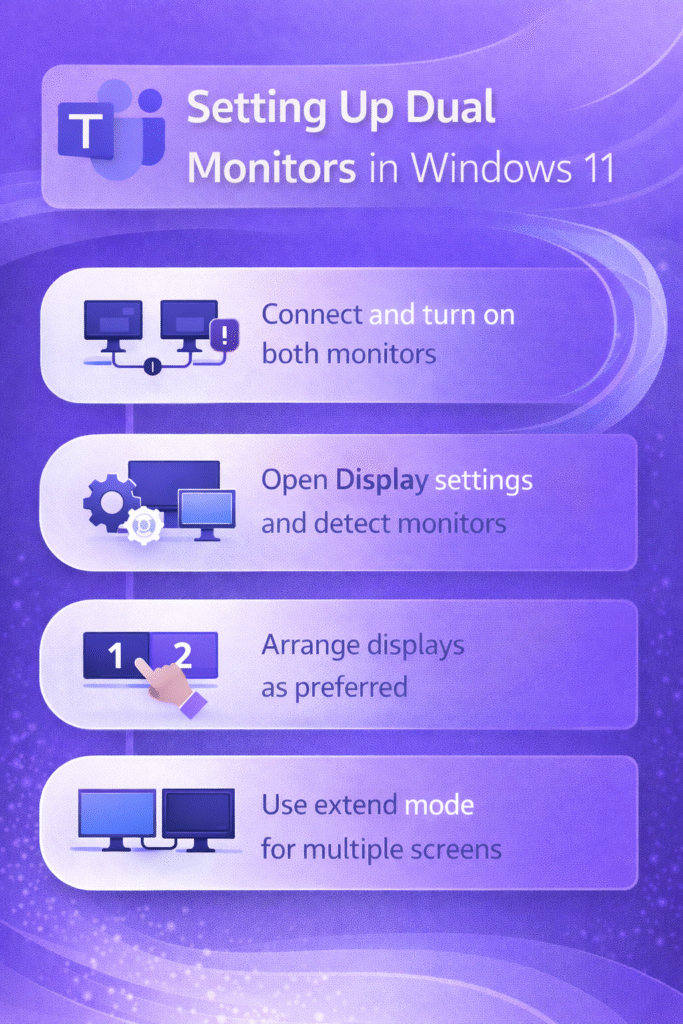

Physical connection and initial display detection
Before accessing Windows 11 display settings, establishing proper physical connections between your computer and monitors ensures successful configuration. Most modern computers provide multiple video output options including HDMI, DisplayPort, USB-C, and VGA connections that support simultaneous monitor operations.
- Connect your primary monitor to your computer’s main video output port using the appropriate cable, ensuring secure connections at both ends to prevent signal interruptions.
- Attach your second monitor to an available secondary video output port, utilizing different port types if necessary while maintaining signal quality through proper cable selection.
- Power on both monitors and verify that each display receives video signals, with most monitors displaying manufacturer logos or input source information during startup sequences.
- Right-click anywhere on your desktop and select “Display settings” from the context menu to access Windows 11’s comprehensive display management interface.
- Navigate to the Display settings window where Windows 11 automatically scans for connected monitors and displays detected screens as numbered rectangles representing your physical monitor arrangement.
Expert Tip: If your second monitor doesn’t appear immediately, click the “Detect” button in Display settings to force Windows 11 to scan for additional connected displays.
Configure display arrangement and positioning
Windows 11 allows precise control over how your monitors are arranged relative to each other, ensuring smooth cursor movement and logical window placement across multiple screens.
- Click and drag the numbered display rectangles in the Display settings preview to match your physical monitor positioning, ensuring the arrangement reflects your actual desktop setup.
- Position the secondary monitor rectangle to the right, left, above, or below the primary display rectangle based on your preferred workflow and physical monitor placement on your desk.
- Test the arrangement by moving your mouse cursor across screen boundaries, verifying that the cursor transitions smoothly between monitors in the expected directions.
- Select each display rectangle individually to access specific configuration options including resolution, orientation, and scaling settings for that particular monitor.
Windows 11 Display mode selection & resolution optimization
Windows 11 offers multiple display modes that determine how content appears across your dual monitor setup, with each mode serving different productivity scenarios and user preferences.
- Access the “Multiple displays” dropdown menu in Display settings to choose between Duplicate, Extend, Show only on 1, or Show only on 2 display modes for your specific workflow requirements.
- Select “Extend these displays” to create an expanded desktop where each monitor functions as independent workspace, allowing different applications to run simultaneously on separate screens.
- Choose “Duplicate these displays” when you need identical content on both monitors, useful for presentations or situations requiring mirrored display output across multiple screens.
- Configure individual monitor resolutions by selecting each display and choosing appropriate resolution settings from the Resolution dropdown menu, ensuring optimal image quality for each screen.
- Adjust display scaling percentages for each monitor independently, accommodating different screen sizes or viewing distances while maintaining readable text and interface elements across both displays.
Remember: Higher resolution settings provide sharper images but may impact system performance, especially when running graphics-intensive applications across multiple monitors.
Advanced display configuration and optimization
Fine-tuning advanced display properties ensures optimal performance and visual consistency across your dual monitor configuration while accommodating specific application requirements.
- Set your preferred primary display by selecting the desired monitor and checking the “Make this my main display” option, determining where the taskbar appears and new windows open by default.
- Configure display orientation settings for each monitor individually, rotating screens to portrait or landscape modes based on content types and workspace ergonomics.
- Adjust color profiles and advanced display properties through the Advanced display settings link, accessing manufacturer-specific options and color calibration tools for professional work requirements.
- Enable or disable high dynamic range settings for compatible monitors, enhancing visual quality for supported content while ensuring consistent color reproduction across both displays.
Solving common dual screen configuration issues
Even with proper setup procedures, dual monitor configurations may encounter specific technical challenges that require targeted troubleshooting approaches to resolve display problems effectively.
- Monitor not detected issues often result from loose cable connections, incompatible display drivers, or insufficient graphics card capabilities, requiring systematic hardware and software verification procedures.
- Resolution mismatch problems occur when monitors display different aspect ratios or scaling factors, causing visual inconsistencies that affect workflow efficiency and user experience across multiple screens.
- Performance degradation during dual monitor usage typically stems from graphics processing limitations, requiring display settings adjustments or graphics driver updates to maintain smooth operation. Learn more about performance fixes.
- Display arrangement confusion happens when cursor movement doesn’t match expected screen transitions, necessitating arrangement reconfiguration in Display settings to align with physical monitor positioning accurately.
